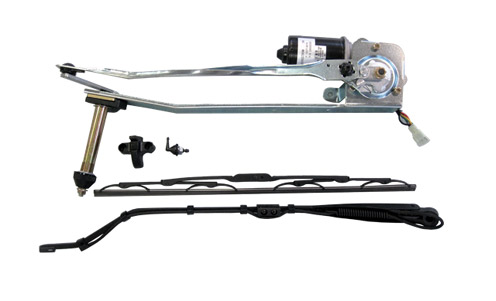

Wiper motor


Wiper Motor

Specifications

Type

 Ferrite Magnet Type
Rated Voltage DC 24V
Test Voltage DC 27A
Approved Voltage DC 20 ~ 30V
No-load trait
(WHEN HOT)		 Speed

40±3RPM

Current 1A MAX
Rated-load trait
(WHEN HOT)		 Torque

40kgf/㎠

Speed

36±3RPM

Current 3A MAX
Locked state Torque

MIN.250kgf/㎠

Working angle

78°±5°

Parking angle

85.35°±5°

Rotating direction CW
Insulation resistance

MIN. 1MΩ WITH DC 500V MEGGER
